When a fan is working in a clean and comfortable environment, material selection may not seem like a difficult issue. But once the air contains moisture, chemicals, corrosive gases, coating fumes, or process contaminants, the fan material becomes much more important. This is exactly where our 304 Stainless Steel Centrifugal Fan comes in.

At Zhejiang Shangyang Industrial Fan Co., Ltd., we manufacture Industrial Centrifugal Fans for applications where stable airflow, suitable material selection, and long-term operation matter. Our 304 Stainless Steel Centrifugal Fan is designed for industrial ventilation, exhaust, process air handling, chemical applications, coating systems, food processing, environmental protection equipment, and other demanding working conditions.

I have worked with industrial fan design and manufacturing teams for many years, and one thing I have learned is that choosing a fan should never start with the fan name alone. A customer may ask for a Stainless Steel Fan, but the real questions are usually different: What gas will the fan handle? What is the required airflow? What pressure does the system need? What temperature will the fan see? Is there moisture or corrosive material in the air? How long will the fan run every day?

These details determine whether a 304 stainless steel centrifugal fan is suitable and how it should be built.

Our company has around 20 years of experience in fan technology design, manufacturing, and sales. Our factory in Jinyun, Zhejiang, produces standard and non-standard industrial fans, including centrifugal fans, High-Temperature Fans, induced draft fans, axial fans, Low-Noise Centrifugal Fans, High-Pressure Fans, stainless steel centrifugal fans, hot air circulating fans, mixing fans, and explosion-proof centrifugal fans.

We do not simply change the material of a standard fan and call it a stainless steel fan. We look at the complete operating condition and then select the fan structure, material, motor, drive arrangement, and other components according to the actual application.

1. What Is a 304 Stainless Steel Centrifugal Fan?

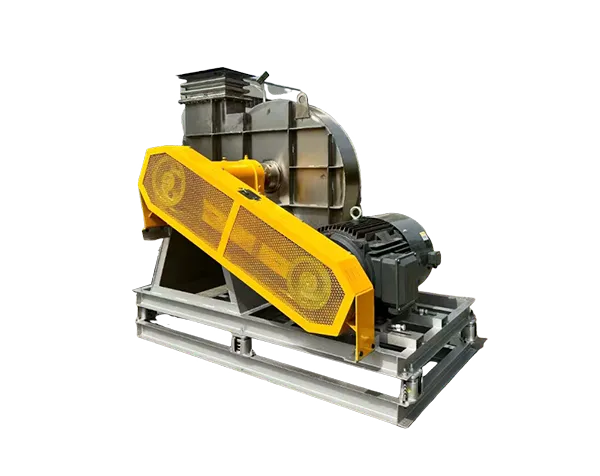

A 304 Stainless Steel Centrifugal Fan is a centrifugal air-moving machine that uses 304 stainless steel for suitable fan components where corrosion resistance and material compatibility are important. Compared with ordinary carbon steel construction, stainless steel can offer better resistance to moisture and many common industrial environments.

The basic job of the fan is simple: move air or process gas from one location to another. The centrifugal design uses a rotating impeller to accelerate the gas outward. The fan casing then guides the moving gas and converts part of its velocity into pressure.

This design makes centrifugal fans useful when a ventilation system has ducts, filters, scrubbers, heat exchangers, dust collectors, spray booths, or other resistance. In other words, the fan is not only moving air in an open room. It is usually working against system resistance.

For a stainless steel centrifugal fan, the material becomes part of the performance discussion. The fan may be installed in an environment where water vapor, chemical fumes, cleaning agents, coating gases, or other substances are present. The correct stainless steel construction can help reduce corrosion-related problems, but material selection must still be based on the actual medium.

I always recommend that customers provide the gas type before placing an order. The term "corrosion-resistant" is not a universal guarantee for every chemical. Different acids, alkalis, salts, temperatures, and concentrations behave differently. In some applications, 304 stainless steel is suitable. In other applications, a different material or additional surface treatment may be more appropriate.

That is why we treat 304 stainless steel centrifugal fan selection as an engineering task rather than simply a catalog choice.

2. How Does the 304 Stainless Steel Centrifugal Fan Work?

The working principle is easier to understand than it may sound.

When the motor starts, it drives the centrifugal fan impeller to rotate. Gas enters through the fan inlet and reaches the center of the rotating impeller. As the impeller rotates, centrifugal force moves the gas from the center toward the outer edge of the blades.

The gas leaves the impeller at a higher velocity. Inside the casing, the airflow is guided toward the outlet. Part of the velocity energy is converted into pressure, allowing the fan to push the gas through ducts and equipment.

In a real industrial system, the fan normally works together with other equipment. For example, a coating exhaust system may include a hood, ductwork, filter or treatment unit, damper, and fan. The fan must provide enough airflow and pressure to overcome the resistance of the entire system.

This point is important when selecting an industrial stainless steel centrifugal fan. A fan with a large motor does not automatically mean it will work well. If the airflow is too high, the system may not operate as expected. If the pressure is too low, the fan may fail to deliver the required airflow after it is connected to the actual duct system.

International testing standards also make an important distinction between fan test performance and actual system performance. ISO 5801:2017 provides standardized procedures for determining fan performance, while ISO/TR 16219:2024 explains how system effects can reduce air performance under actual site conditions compared with standardized test arrangements.

For this reason, I prefer to confirm the complete working point instead of selecting a fan only from a nominal size.

Source: Selection factors are based on common industrial fan engineering practice and the performance variables covered by ANSI/AMCA 210-25 / ASHRAE 51-25, which addresses airflow, pressure, power, air density, rotational speed, and efficiency for laboratory Fan Performance Testing.

3. Main Features of Our 304 Stainless Steel Centrifugal Fan

304 Stainless Steel Construction

The main reason customers choose this type of fan is material performance. 304 stainless steel offers good corrosion resistance in many general industrial environments and also provides a clean, durable surface that is useful in applications where hygiene and easy cleaning are important.

For chemical processing, coating, food production, pharmaceutical equipment, and environmental protection systems, the choice of fan material can directly affect maintenance requirements and service life.

However, I do not recommend treating 304 stainless steel as suitable for every chemical condition. If the gas contains strong corrosive chemicals, high concentrations, or elevated temperatures, we first need to check the medium and operating conditions.

Stable Centrifugal Airflow

The centrifugal structure is well suited to industrial ventilation systems where the fan needs to overcome system resistance. This makes it useful for exhaust systems, dust collection equipment, process ventilation, and other applications connected to ductwork.

Flexible Configuration

Industrial projects are rarely identical. We can configure the fan according to airflow, pressure, temperature, material requirements, motor power, drive arrangement, and installation conditions.

This is particularly useful for customers looking for a custom stainless steel centrifugal fan rather than an off-the-shelf unit.

Suitable for Demanding Environments

Moisture, chemical vapors, process fumes, and frequent cleaning can create difficult working conditions for ordinary steel equipment. Stainless steel construction provides a practical solution for many of these environments.

Standard and Non-Standard Manufacturing

Our factory manufactures both standard industrial fan models and non-standard equipment. If a customer has limited installation space, a special inlet or outlet direction, a specific motor arrangement, or other project requirements, we can review the technical details before production.

Inspection Before Delivery

Before shipment, we check the appearance, main dimensions, rotation direction, assembly condition, and operating condition according to the agreed technical requirements. The purpose is simple: the customer should receive equipment that matches the confirmed order rather than discovering basic problems after installation.

4. Technical Advantages and Practical Selection Guide

When customers search for a Corrosion-Resistant Centrifugal Fan, they often focus only on the stainless steel material. From my experience, that is only one part of the selection.

The fan is a complete system. The impeller, casing, shaft, bearings, motor, transmission, inlet, outlet, base, and control method all need to work together.

For example, if the fan handles a relatively high-temperature gas, the motor may need to be arranged differently from a standard ventilation fan. If the gas contains corrosive vapor, we need to consider which components are exposed to the gas. If the system contains dust, the impeller design and operating conditions need additional attention.

Another important point is balancing. A rotating impeller must run smoothly. Poor balance can increase vibration, noise, bearing load, and maintenance requirements. AMCA's published standards include specific documents covering fan balance quality and vibration levels, showing that these are established engineering considerations in industrial fan design and operation.

Source: The selection logic follows the general performance and system-effect considerations described in ISO 5801:2017, ISO/TR 16219:2024, and ANSI/AMCA 210-25.

I also pay close attention to the difference between laboratory performance and field performance. A fan can perform well during a standardized test but behave differently after being installed with elbows, transitions, dampers, filters, or other equipment. ISO/TR 16219:2024 specifically addresses this issue and notes that system effects depend on the exact geometry of the fan and surrounding components.

That is why our technical discussion with customers normally includes the complete system instead of stopping at "How many cubic meters per hour do you need?"

5. Where Is the 304 Stainless Steel Centrifugal Fan Used?

Chemical Industry

Chemical plants can have ventilation systems exposed to moisture, vapors, and corrosive gases. A stainless steel centrifugal fan can be used in suitable exhaust and process ventilation applications where material compatibility has been confirmed.

For these projects, I normally ask for the gas name, concentration, temperature, humidity, and operating time. This information helps us determine whether 304 stainless steel is suitable or whether another material should be considered.

Pharmaceutical Industry

Pharmaceutical facilities often place strong requirements on ventilation, cleanliness, and material selection. Stainless steel fan construction can be useful in applications where the equipment surface needs to be durable and relatively easy to clean.

Coating and Painting Systems

Coating equipment is one of the industries where our fan experience is especially useful. Exhaust air from coating operations may contain moisture, solvent-related vapors, paint particles, or other process substances.

The fan must be selected according to the actual process rather than simply using a general ventilation fan. Airflow, pressure, gas temperature, gas composition, and the overall exhaust treatment system all need to be considered.

Environmental Protection Equipment

Our stainless steel centrifugal fans can be integrated into environmental protection systems such as industrial exhaust and selected gas treatment applications. Depending on the system, the fan may work with filters, scrubbers, ducts, or other treatment equipment.

Wastewater Treatment

Wastewater treatment facilities can create humid and chemically challenging environments. A corrosion-resistant centrifugal fan may be used for suitable ventilation and exhaust duties where stainless steel provides the required material performance.

Food Processing

Food processing facilities often value stainless steel because of its clean appearance, durability, and suitability for environments where regular cleaning is part of normal operation.

The exact fan design still depends on the air conditions. A food processing application involving ordinary ventilation is different from one involving high humidity, hot air, steam, or process gases.

Other Industrial Applications

Beyond these industries, our industrial fans are also used in thermal energy systems, printing, kiln equipment, boiler systems, cement production, separation equipment, medical latex equipment, air-supported membrane systems, and other industrial processes.

Source: Application categories are based on the industrial fan product scope and applications described by Zhejiang Shangyang Industrial Fan Co., Ltd.; the performance-selection considerations reflect established fan engineering standards including ISO 13349-1:2022 and ANSI/AMCA 210-25. ISO 13349-1:2022 provides terminology and definitions for fans used for various purposes.

6. How We Manufacture and Inspect the Fan

For an industrial fan, manufacturing quality is not only about whether the casing looks good. The rotating parts, dimensional accuracy, welding quality, assembly, balance, motor selection, and final inspection all affect how the equipment behaves after installation.

At our Zhejiang factory, we manufacture both standard and customized industrial fans. Our engineering and manufacturing teams have around 20 years of experience in fan-related work. Our product development has also been influenced by long-term research and improvement in coating fans and environmental protection fans.

Step 1: Confirm the Working Conditions

We first review the customer's technical requirements. Important information includes airflow, pressure, gas temperature, gas composition, humidity, dust content, operating hours, installation position, motor requirements, power supply, and connection dimensions.

This is the stage where many future problems can be avoided. If the working conditions are not clear, it is difficult to select a fan responsibly.

Step 2: Confirm the Material

For a 304 stainless steel centrifugal fan, we confirm which components require stainless steel construction and whether 304 is suitable for the actual medium.

The phrase "stainless steel fan" covers many different applications. The right material depends on the gas, temperature, moisture, chemical concentration, and cleaning conditions.

Step 3: Fan Structure and Configuration

After the working point is confirmed, we determine the appropriate fan configuration. This may include impeller design, casing dimensions, inlet and outlet arrangement, motor power, drive type, shaft arrangement, base, and accessories.

Step 4: Manufacturing and Assembly

During manufacturing, the fan components are processed and assembled according to the confirmed design. Welding and structural work are completed according to the selected construction. Rotating components receive particular attention because alignment and balance are important to stable operation.

Step 5: Inspection Before Delivery

Before shipment, we inspect the fan appearance, dimensions, assembly, rotation direction, and operating condition according to the agreed requirements.

For customers purchasing customized equipment, the final inspection is especially important because the fan may have special dimensions, connections, motor arrangements, or accessories.

Our company also holds multiple national test reports for specialized products and has obtained national explosion-proof certification, energy efficiency certification, and other certifications for applicable products. Certification is always considered according to the specific product and configuration; I do not recommend assuming that one certification automatically applies to every fan model.

7. Why Choose Shangyang for a 304 Stainless Steel Centrifugal Fan?

When customers compare Industrial Fan Manufacturers, price is naturally one consideration. But for a fan that may operate continuously for years, I believe the more useful question is whether the manufacturer understands the actual working condition.

Our experience comes from years of fan design, production, technical communication, and application support. Zhejiang Shangyang Industrial Fan Co., Ltd. is a national high-tech enterprise and a small- and medium-sized technology enterprise. Our sales company is located in Shanghai, while our production factory is located in Jinyun County, Lishui City, Zhejiang Province.

Our team has around 20 years of experience in fan technology design, manufacturing, and sales. Over more than a decade, we have continued to improve and refine products developed from research into coating fans and environmental protection fans.

This background is useful because many stainless steel fan projects are not simply ventilation projects. They may involve coating lines, chemical equipment, environmental protection systems, thermal processes, or special production conditions.

We manufacture a wide range of industrial fans, including:

• Centrifugal fans

• 304 stainless steel centrifugal fans

• High-temperature fans

• Induced draft fans

• Axial fans

• Low-noise centrifugal fans

• High-pressure fans

• Hot air circulating fans

• Mixing fans

• Explosion-proof centrifugal fans

We also support non-standard fan configurations. If the customer has a special installation space, unusual connection dimensions, a particular gas condition, or a special operating requirement, we can review the project before production.

Our working principle is straightforward: quality comes first, and the customer's actual requirements are the basis for the technical solution. We would rather spend more time confirming the application before production than deliver a fan that looks correct but does not perform properly in the customer's system.

8. Production Cycle, Delivery, Payment, Transportation and Packaging

Production Cycle

The production time for a 304 stainless steel centrifugal fan depends on the model, airflow, pressure, material configuration, motor power, drive arrangement, order quantity, and customization requirements.

Standard configurations normally have a shorter production period because the design and manufacturing process are already established. Customized fans require additional technical confirmation and may therefore need more time.

For an accurate delivery schedule, I recommend confirming the technical parameters and quantity before placing the order. This gives both sides a clear production plan.

Delivery Standard

Before delivery, we check the fan according to the confirmed order and technical requirements. The inspection generally covers appearance, dimensions, rotation direction, assembly condition, and operating condition.

For customized orders, the delivery requirements can also include agreed accessories, connection dimensions, motor configuration, documentation, and other project-specific items.

Payment Method

For international orders, payment is typically made by T/T according to the sales contract. The exact payment schedule, deposit, balance, and other commercial conditions are confirmed with the customer before production.

Transportation

Depending on the fan size, destination, urgency, and customer requirements, transportation can be arranged by road, sea, or rail. For overseas orders, sea transportation is commonly suitable for larger industrial equipment, while other methods can be considered according to the project.

Packaging

Packaging is selected according to the fan structure and transportation conditions. Protective film, wooden crates, steel frames, and reinforced packaging can be used as appropriate.

For larger equipment, we pay particular attention to protecting the casing, motor, shaft, bearings, inlet, outlet, and other parts that could be affected by impact or movement during transportation.

Technical Reference: How Fan Performance Is Normally Evaluated

For industrial fan buyers, it is useful to understand what performance data actually means. A fan catalogue may list airflow, pressure, power, speed, or efficiency, but these values are meaningful only when the test conditions and definitions are clear.

ANSI/AMCA 210-25 / ASHRAE 51-25 establishes uniform laboratory methods for determining aerodynamic performance in terms of airflow rate, pressure developed, power consumption, air density, rotational speed, and efficiency.

Sources: International Organization for Standardization and Air Movement and Control Association International.

These standards do not replace project-specific engineering. Instead, they give manufacturers and customers a common technical language. This is particularly important when comparing fans from different manufacturers or purchasing equipment for an overseas project.

Frequently Asked Questions About 304 Stainless Steel Centrifugal Fans

Is 304 stainless steel suitable for all corrosive gases?

No. 304 stainless steel has useful corrosion resistance, but it is not suitable for every chemical, concentration, temperature, or process condition. We recommend providing the gas composition, concentration, temperature, humidity, and operating conditions so the material can be evaluated correctly.

What information do I need to provide when ordering a stainless steel centrifugal fan?

The most useful information includes required airflow, pressure, gas type, gas temperature, gas density if known, dust or particle content, operating time, installation position, motor power requirements, power supply, inlet and outlet dimensions, and any special material requirements.

Can you manufacture a customized 304 stainless steel centrifugal fan?

Yes. Our factory produces both standard and non-standard industrial fans. Customized options can be discussed based on the actual project, including dimensions, airflow, pressure, material, motor, drive arrangement, installation direction, and other requirements.

Can the fan be used in a coating line?

Yes, stainless steel centrifugal fans can be used for suitable coating ventilation and exhaust applications. However, the actual gas composition, temperature, airflow, pressure, and exhaust treatment system need to be confirmed before selecting the fan.

Can this fan be used for wastewater treatment?

It can be used for suitable ventilation and exhaust duties in wastewater treatment environments. Since humidity and corrosive gases may be present, material selection and operating conditions should be reviewed before production.

How long is the production time?

There is no single production time for every model. Standard products normally have a shorter lead time, while customized fans require additional technical confirmation and manufacturing time. We confirm the delivery schedule according to the final specifications and order quantity.

How do you inspect the fan before delivery?

We inspect the appearance, dimensions, rotation direction, assembly, and operating condition according to the confirmed order and technical requirements. For customized equipment, we also check the agreed configuration and accessories.

How do you package the stainless steel centrifugal fan?

Depending on the fan size and shipping conditions, we can use protective film, wooden crates, steel frames, and reinforced packaging. The main goal is to protect the casing, motor, shaft, bearings, and other important components during transportation.

What payment method do you accept?

For international orders, T/T is typically used. The exact payment terms are confirmed in the sales contract before production.

Can you arrange international transportation?

Yes. Transportation can be arranged according to the project requirements. Road, sea, and rail transportation are available options depending on the equipment size, destination, and delivery plan.

How I Recommend Selecting the Right 304 Stainless Steel Centrifugal Fan

If you are buying your first Stainless Steel Industrial Fan, I would not recommend starting with the motor power or fan size. Start with the process.

First, tell us what the fan needs to move. Is it clean air, humid air, coating exhaust, chemical vapor, hot air, or another process gas?

Second, tell us how much air you need to move. The required airflow is one of the most important starting points.

Third, tell us how much resistance exists in the system. Long ducts, elbows, filters, scrubbers, dampers, heat exchangers, and other equipment can all affect the pressure requirement.

Fourth, provide the gas temperature. Temperature can affect material selection, fan construction, motor arrangement, and other components.

Fifth, explain the installation conditions. If the fan has to fit into an existing space, please provide the available dimensions and connection direction.

Finally, tell us how the fan will operate. A fan that runs a few hours per day is not necessarily configured in the same way as a fan expected to operate continuously.

This information gives us a much better basis for recommending a suitable 304 stainless steel centrifugal fan for industrial ventilation.

Conclusion

A 304 stainless steel centrifugal fan is not simply a conventional centrifugal fan made from stainless steel. For industrial applications, the material, airflow, pressure, temperature, gas composition, motor, drive arrangement, installation, and operating conditions all need to be considered together.

Our 304 Stainless Steel Centrifugal Fan is developed for applications where corrosion resistance, stable airflow, durable construction, and suitable material selection are important. We supply fans for chemical processing, pharmaceutical production, coating systems, environmental protection, wastewater treatment, food processing, and many other industrial applications.

At Zhejiang Shangyang Industrial Fan Co., Ltd., we combine around 20 years of fan design, manufacturing, and sales experience with practical project requirements. We manufacture both standard and customized industrial fans, and our products are supplied throughout China and exported overseas as supporting equipment.

For us, the goal is not to sell a fan simply because the model looks suitable. The goal is to understand the working condition first, select the right configuration, manufacture it carefully, inspect it before delivery, and provide practical support throughout the project.

If you are looking for a 304 stainless steel Centrifugal Fan Manufacturer for chemical exhaust, coating ventilation, environmental protection equipment, wastewater treatment, food processing, or another industrial application, you can send us your airflow, pressure, gas type, temperature, installation requirements, and other available technical information. We can then review the working condition and recommend a suitable fan configuration.
